PSB-S1 Thermistor
The standard product in PSB thermistors
  • product description
  • Gold electrodes are used on the thermistor chip
  • Due to the glass encapsulation, excellent heat resistance and weather resistance are ensured
  • Ensure long-term stability of resistance
  • Using consistent automated production, mass production and supply of high-quality products
  • Achievements in obtaining patents in 8 major countries in the world (Japan, the United States, Canada, France, the United Kingdom, Germany, Italy, and Switzerland)
  • Product Details
Application example

Outside the following fields, it is suitable for equipment with high reliability requirements for temperature detection and control

  • 1. Air-conditioning machines are general
  • 2. Hot water boiler
  • 3. Home appliances
  • 4. Various purposes for vehicles (water temperature, inlet temperature, outside temperature, battery, motor, fuel temperature)
range of working temperature -50～+300℃
Thermal time constant About 12 seconds
Dissipation constant About 1.3mW/℃
Insulation resistance DC500V 50MΩ or more

※When there is no special description, the thermal time constant and dissipation constant are the test results in still air.

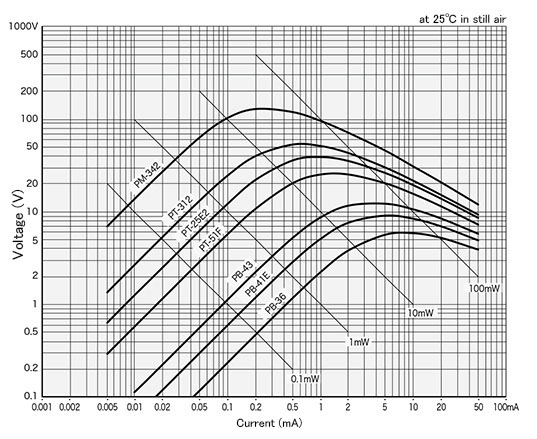

Voltage-current characteristics
